Electro

DOCK 8

Electro Dock 8

High Power 380W GaN-III USB Charging Station with PD140W Type-C Ports
Electro Dock 8u.518.png
Dock 8 mid1.png
POWERHOUSE

True 380W Combined Output

Charging docks are becoming more and more popular for users who love to multitask. Choosing the right one, however, is not as easy as it seems. There are many false-claims in terms of output, with 400W, 600W or even 800W output misleading consumers. Accutone is proud to introduce, Electro Dock 8, the most powerful multi-port charging dock in the market, with true 380W output! Designed for concurrently powering up large battery devices, Dock 8 has two PD140W Type-C charging ports, perfect for charging Macbooks or Gaming Notebooks. It has four more PD100W Type-C ports, and two extra QC30W Type-A ports. Connecting 2 devices to both 140W port and 1 device to the 100W port can generate a true combined output of 380W total. Few if any charger in the market can do the same.

Yet, high-power charging may cause safety concerns for users. This is why purchasing from reliable brand such as Accutone is so important. Dock 8 uses industry standard Gallium Nitride III Technology with Overheat Protection, Short-Circuit Protection, Discharge Protection, Over-Voltage Protection, Over-Current Protection, Overload Protection and it prevents under-voltage and is Fire-Retardant.

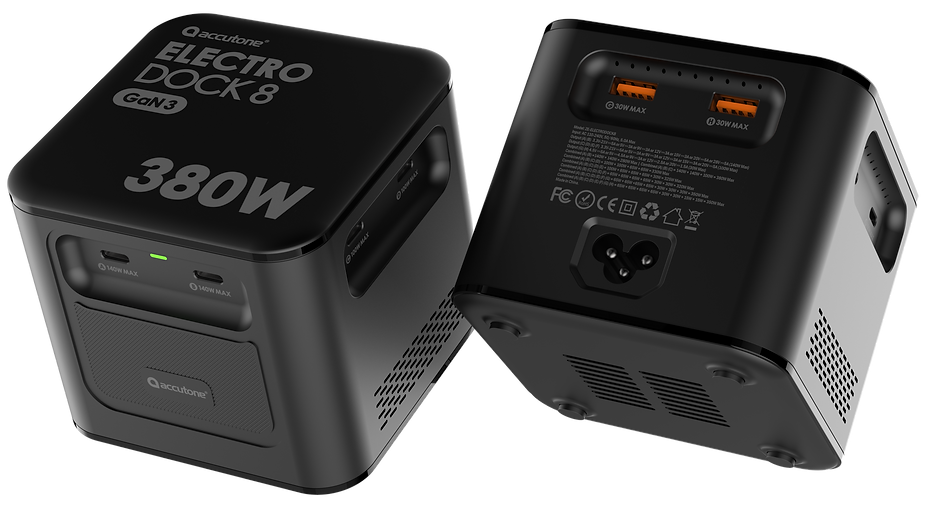

PRODUCT OVERVIEW

Electro Dock 8u.522.png
PD140W Type-C Ports
Electro Dock 8u.524.png

Rare in the market with two

140W Power Delivery ports

which still retain total of 280W

when used at the same time.

+

QC Type-A Ports
Dock 8 mid2.png

For legacy devices, Dock 8

offers two additional Type-A

output ports, each with Quick

Charge 30W maximum.

+

Detachable Power Cord
Dock 8 mid1.png

For easy replacement and

highest compatibility, Dock 8

comes with standard two-prong

detachable cable.

+

Four PD100W Ports
Electro Dock 8u.525.png

Aside from high-power ports,

Electro Dock 8 comes with

four extra 100W Type-C

ports, enough for most needs.

+

Design for Safety
Electro Dock 8u.525.png

Dock 8 comes with a wide

variety of protection including

overheating, short-circuit, over-

voltage, overload & fire retardant.

+

Heat Ventilation
Electro Dock 8u.524.png

With safety and power efficiency

in mind, the casing of Dock 8

comes with various sets of heat

ventilation grilles and holes.

+

TECHNICAL SPECIFICATIONS

  • Materials: ABS + Fireproof PC

  • Weight: 650g

  • Dimensions: 94 x 94 x 87mm

  • Input: AC 110-240V, 50/60Hz, 5.0A Max

  • Output (A) (B): 3.3V-21V⎓5A, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A 140W Max

  • Output (C) (D) (E) (F): 3.3V-21V⎓5A, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A 100W Max

  • Output (G) (H) Type-A: 4.5V⎓5A, 5V⎓4.5A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A 30W Max

  • Combined (A) (B) 140W + 140W = 280W

  • Combined (A) (B) (C) 140W + 140W + 100W = 380W

  • Combined (A) (B) (C) (D) 100W + 100W + 65W + 65W = 330W

  • Combined (A) (B) (C) (D) (E) 100W + 65W + 65W + 65W + 30W = 325W

  • Combined (A) (B) (C) (D) (E) (F) 65W + 65W + 65W + 65W + 30W + 30W = 320W

  • Combined (A) (B) (C) (D) (E) (F) (G) 65W + 65W + 65W + 65W + 30W + 30W + 30W = 350W

  • Combined (A) (B) (C) (D) (E) (F) (G) (H) 65W + 65W + 65W + 65W + 30W + 30W + 15W + 15W = 350W

Electro Dock 8u.526.png
